AO-28 Power Transformer - 120 VAC
Skip to product information
AO-28 Power Transformer - 120 VAC
$260.00
Sale price
$260.00
Regular price
Shipping calculated at checkout.

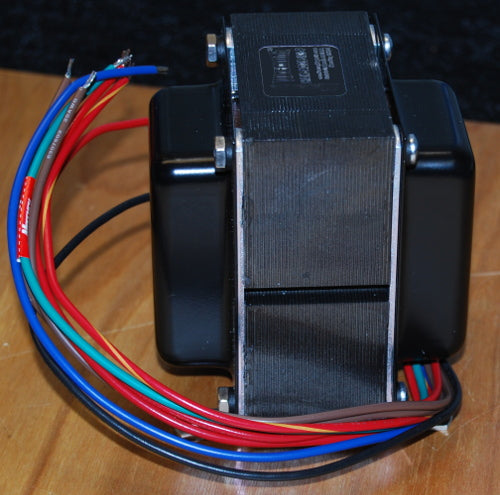

New replacement power transformer for 1962 and later Hammond B-3, C-3, A-100, D-100, and RT-3 preamplifiers equipped with the black power transformer. Also compatible with pre-1962 models equipped with the original silver transformer, although minor chassis modifications are required.
Designed for 120 VAC, 60 Hz operation. Not recommended for use in 50 Hz applications.
The high-voltage secondary produces 754 VAC unloaded with a 117 VAC input.
Original Hammond Part Number: 003-024891
Made in the USA. Backed by a 10-year warranty!
Installation instructions, a schematic, and/or a component list will be provided as a digital download after purchase, as applicable.
